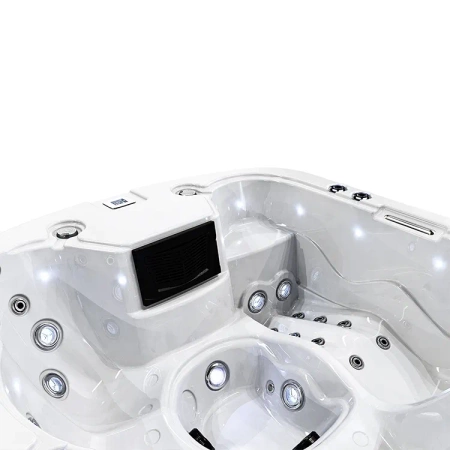

Outdoor Jacuzzi SPA — 5-person (1 lounge & 4 seats)
2180 × 2180 × 900 mm
Built with US Aristech acrylic and Balboa BP200 G2 + TP500S control (3 kW heater), this 5-seater combines a compact footprint with 42 total jets, a quiet 0.5 HP circulation pump and a 3 HP jet pump for targeted hydrotherapy.
Overview
One full lounge plus four contoured seats offer versatile soaking for families. The 2 cm shell insulation, solid timber frame, ABS base and PS skirt (optional colors) provide durability and heat retention.
- 42 total jets — balanced massage coverage.
- Balboa control — stable temperature, easy interface.
- Robust cabinet — timber frame, ABS base, PS skirt.
Configuration / Power
- Control system
- Balboa BP200 G2 + TP500S + 3 kW heater
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pc
- Seating layout
- 1 lounge & 4 seats
Dimensions & Weight
- Product size
- 2180 × 2180 × 900 mm
Materials
- Shell material
- US Aristech Acrylic
- Shell colors
- 7 options
- Shell insulation
- 2 cm
- Support frame
- Solid timber frame
- Base
- ABS
- Skirt
- PS (optional colors)
Pumps
- Jet pump
- 1 × 3 HP
- Circulation pump
- 1 × 0.5 HP
Jet Configuration
- Total jets
- 42 pcs
Filtration & Hygiene
- Top-mount filter
- 1 × 100 sf
- Ozonator
- 1 pc
Equipment
- Diverter valves
- 2 pcs
- Suction
- 2 pcs
- Air valve
- 1 pc
- Drainage outlet
- 1 pc
- Pillows
- 3 pcs
Compact comfort
A versatile 5-seater with efficient insulation and reliable Balboa electronics — great performance without taking over your patio.
Specs based on the manufacturer’s sheet — minor variations may occur depending on configuration.
