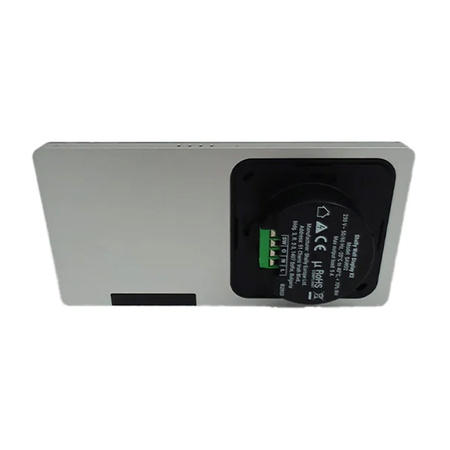

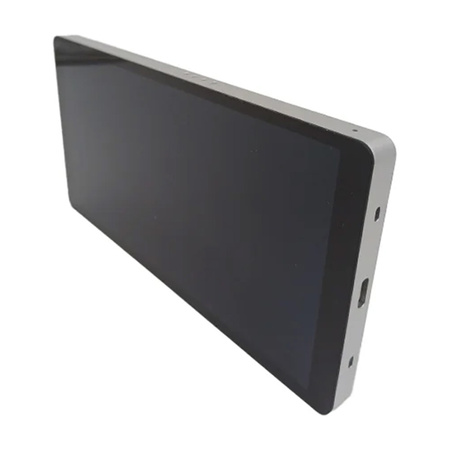

Shelly Wall Display X2 WiFi/BLU dual control panel (silver) + BLU H&T

Shelly Wall Display X2 WiFi/BLU dual control panel (silver) + BLU H&T

The Shelly Wall Display X2 is a control panel with a 6.95" colour touchscreen and a built-in 5 A relay that allows you to control lighting, monitor energy consumption, control temperature and humidity and create automation scenes. With integration with the Shelly Smart Control and Home Assistant app, you gain access to full functionality from a single interface. The included Shelly BLU H&T sensor allows for precise environmental readings and automatic device responses. The product does not require an additional hub and connects directly via Wi-Fi or Bluetooth. It can also act as a Bluetooth gateway for other BLE devices. You can successfully mount it in a wall box.

Customisable screen

The 6.95" colour touchscreen display with provides convenient control and intuitive navigation. You can customise the home screen to display up to 6 of your most frequently used devices or scenes. Gesture operation and switching between widescreen and portrait mode make it easy to use in different installation conditions. The display can operate in screensaver mode, which works well in representative spaces. In addition, bookmarks for favourite devices, scenes and groups are available.

Temperature and humidity control

By working with the Shelly BLU H&T sensor, the panel functions as a local thermostat. The collected temperature and humidity data enable real-time control of heating, ventilation or air conditioning. This solution makes it easier to maintain optimal indoor conditions and respond to environmental changes, such as preventing mould in damp rooms. Automations can include the activation of fans, dehumidifiers or humidifiers. The device can also be used in greenhouses to maintain an optimal microclimate for plants.

Monitoring energy consumption

The panel works in conjunction with the Shelly PM units and allows you to monitor power consumption for each room. This allows you to identify energy-intensive equipment and optimise energy consumption, which in turn translates into lower bills and greater energy efficiency. It is also possible to respond remotely to abnormal energy consumption, which increases control and security.

Integration with automation systems

The device works with the Shelly Smart Control app and the Home Assistant system. This allows you to remotely manage all devices, create schedules and automations, and control your home from anywhere in the world. The system also supports MQTT and webhook shares (up to 20 with the ability to assign 2 URLs), giving you full integration freedom for advanced installations.

Multifunctional sensors

With a light intensity sensor, humidity sensor, temperature sensor, microphone, proximity sensor and G-sensor, you can create advanced automation scenes depending on the room conditions. Lights can switch on automatically when motion is detected or at a certain brightness level. You can also receive alerts on sudden temperature changes for added safety.

Control of devices and groups

The product allows direct control of individual devices, groups and scenes assigned to specific rooms. All the most important functions are always at hand on the home screen. An easy-to-read interface with navigation tabs for rooms, groups and scenes enhances operating convenience in larger home systems.

Audio and notification support

The integrated 0.8 W speaker allows music, notifications, alarms and other audio signals to be played. The device can be connected to Bluetooth speakers or the Sonos system.
