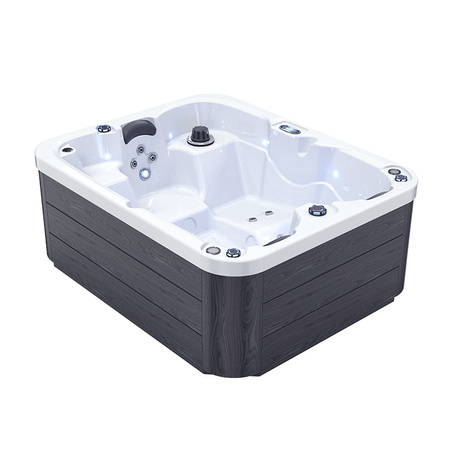

Outdoor Jacuzzi SPA — 3-person (2 lounges & 1 seat)
2100 × 1700 × 820 mm
Compact 3-seater built from US Aristech acrylic with Balboa BP200G2 + TP500S control (3 kW heater). A quiet 0.5 HP circulation pump plus a 3 HP jet pump power a 30-jet layout for daily hydrotherapy.
Configuration / Power
- Control system
- Balboa BP200G2 + TP500S + 3 kW heater
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pc
- Seating layout
- 2 lounges & 1 seat
Dimensions & Weight
- Product size
- 2100 × 1700 × 820 mm
- Dry weight
- 280 kg
- Filled weight
- 1600 kg
Shell & Cabinet
- Shell material
- US Aristech Acrylic
- Shell colors
- 7 options
- Shell insulation
- 2 cm
- Support frame
- Solid antiseptic wood
- Base
- ABS
- Skirt
- PS skirt + PC corner
Pumps
- Circulation pump
- 1 × 0.5 HP
- Jet pump
- 1 × 3 HP
Jet Configuration
- Total jets
- 30 pcs
- Jets 3.5″
- 7 pcs
- Jets 5″
- 4 pcs
- Jets 1″ + 2″
- 19 pcs
Filtration & Hygiene
- Filter
- 1 × 50 sf
- Ozonator
- 1 pc
Equipment
- Suction
- 3 pcs
- Air valves
- 2 pcs
- Drainage outlet
- 1 pc
- Headrest pillows
- 3 pcs
Specs based on the manufacturer’s sheet — minor variations may occur depending on configuration.
