Outdoor Jacuzzi SPA — 5-person (1 lounge & 4 seats)
2000 × 2000 × 880 mm
Family-size spa built with US Aristech acrylic and Balboa BP6013G2 + Touch3 control (3 kW heater). A balanced 40-jet layout, a quiet 0.5 HP circulation pump and dual 3 HP jet pumps deliver strong, even hydrotherapy.
Overview
One lounge plus four upright seats offer versatile positions. The insulated 2 cm shell, antiseptic wood frame, ABS base and PS skirt with PC corners ensure stability and long-term durability.

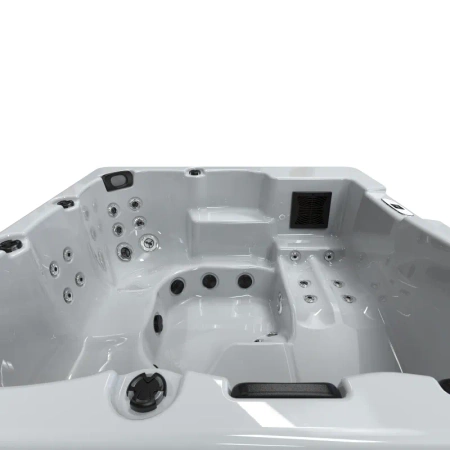

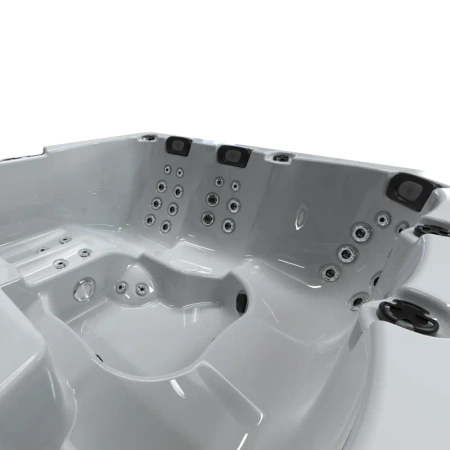

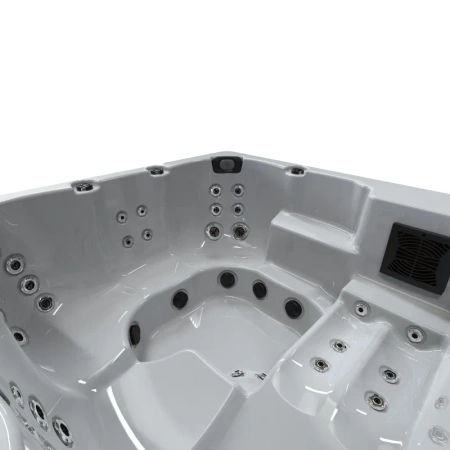

- 40 total jets — mix of 5″, 3.5″ and 2″ jets for back, shoulders and calves.

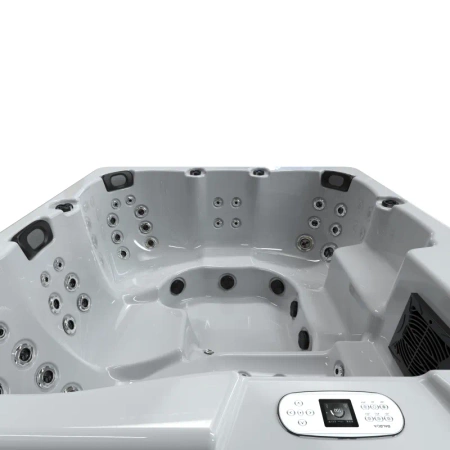

- Balboa electronics — reliable temperature control with Touch3 interface.
- Durable cabinet — Aristech acrylic, solid antiseptic wood frame, ABS base, PS skirt + PC corners.
Configuration / Power
- Control system
- Balboa BP6013G2 + Touch3 + 3 kW heater
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pc

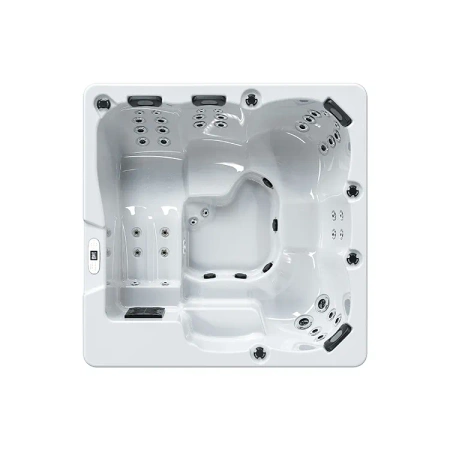

- Seating layout
- 1 lounge & 4 seats
Dimensions & Weight
- Product size
- 2000 × 2000 × 880 mm
- Dry weight
- 300 kg
- Filled weight
- 1600 kg
Materials
- Shell material
- US Aristech Acrylic
- Shell colors
- 7 options
- Shell insulation
- 2 cm
- Support frame
- Solid antiseptic wood
- Base
- ABS
- Skirt
- PS skirt + PC corner
Pumps
- Circulation pump
- 1 × 0.5 HP
- Jet pumps
- 2 × 3 HP
Jet Configuration
- Total jets
- 40 pcs
- Jets 5″
- 2 pcs
- Jets 3.5″
- 20 pcs
- Jets 2″
- 18 pcs
Filtration & Hygiene
- Filter
- 1 pc; 1 × 50 sf
- Ozonator
- 1 pc
Equipment
- Suction
- 5 pcs
- Air valves
- 3 pcs
- Drainage outlet
- 1 pc
- Headrest pillows
- 4 pcs
Comfort & efficiency
Efficient insulation and a robust cabinet help retain heat and resist weather — ideal for everyday hydrotherapy without the bulk.
Specs based on the manufacturer’s sheet — minor variations may occur depending on configuration.
