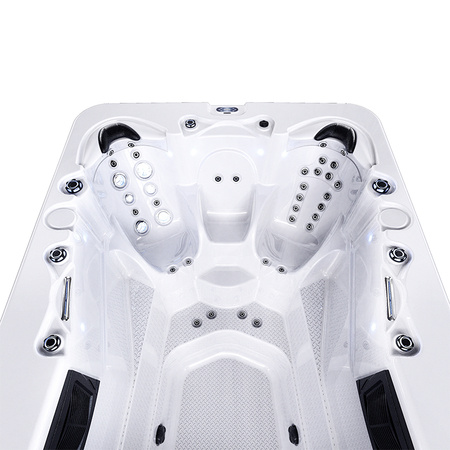

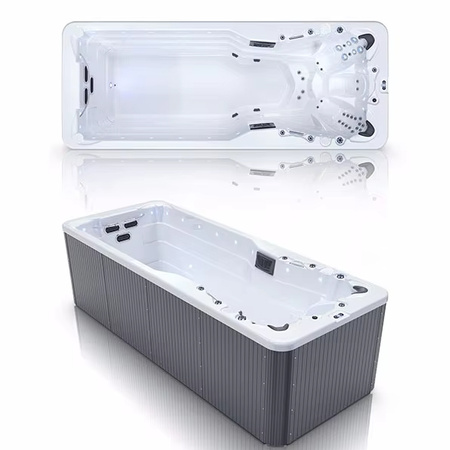

Swim Spa — 3-seat (44 + 3 swim jets)
5800 × 2280 × 1620 mm
Family swim spa finished in US Aristech Acrylic (color Silver White 6427). Powered by Balboa BP6013 G3 + TP600 (3 kW heater), a quiet 0.35 HP circulation pump and 3 × 3 HP jet pumps. Galvanized-steel frame, PVC base, and PS cabinet (optional colors).
Configuration / Power
- Control system
- Balboa BP6013 G3 + TP600 + 3 kW heater
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pc
- Seating
- 3 seats
Dimensions
- Product size
- 5800 × 2280 × 1620 mm
Shell & Cabinet
- Shell color
- Silver White 6427
- Shell material
- US Aristech Acrylic
- Shell insulation
- ~2 cm
- Support frame
- Galvanized steel
- Base
- PVC
- Skirt
- PS (optional colors)
Pumps
- Circulation pump
- 1 × 0.35 HP
- Jet pumps
- 3 × 3 HP
Jet Configuration
- Total jets
- 44 + 3 swim jets
- Swim jets
- 3 pcs (counter-current)
Filtration & Hygiene
- Skimmer filters
- 2 pcs • ~100 sf each
- Ozonator
- 1 pc
Features
- Suction
- 4 pcs
- Air valves
- 4 pcs
- Drainage outlet
- 1 pc
- Headrest pillows
- 2 pcs
Specs based on the manufacturer’s sheet — may vary with configuration.
