Compact Swim Spa — 3 seats
4500 × 2280 × 1400 mm

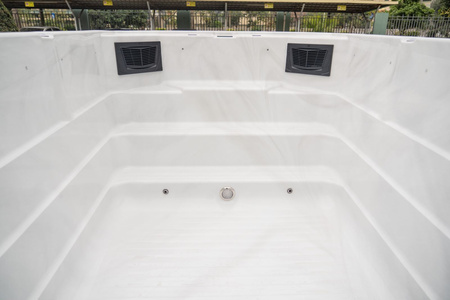

Three-seat compact swim spa built with US Aristech Acrylic (color Silver White 6427) on a galvanized-steel frame. Powered by a Balboa BP200G2 + TOUCH3 controller with a 3 kW heater. Pump pack: 1 × 1 HP circulation pump and 2 × 3 HP jet pumps.
Configuration / Power
- Control system
- Balboa BP200G2 + TOUCH3 + 3 kW heater
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pc
- Seating layout
- 3 seats
Dimensions & Weight
- Product size
- 4500 × 2280 × 1400 mm
- Dry weight
- 1050 kg
- Filled weight
- 5750 kg
Shell & Cabinet
- Shell material
- US Aristech Acrylic
- Shell color
- Silver White 6427
- Shell insulation
- ~2 cm
- Support frame
- Galvanized steel
- Base
- PVC
- Skirt
- PS (optional colors)
Pumps
- Circulation pump
- 1 × 1 HP
- Jet pumps
- 2 × 3 HP

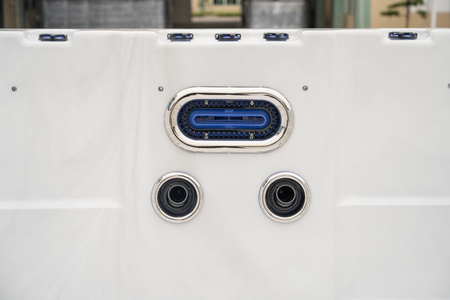

Jet Configuration
- Total jets
- 4 pcs
- Hydro jets (1″)
- 2 pcs
- Hydro jets (5″)
- 2 pcs
Filtration & Hygiene
- Skimmer filters
- 2 pcs • ~100 sf each
- Ozonator
- 1 pc
Features
- Suction
- 2 pcs
- Drainage outlet
- 1 pc
Technical data extracted from the manufacturer’s card — commercial terms removed; specs may vary with configuration.
