Outdoor Jacuzzi SPA — 4 seats
1810 × 1810 × 770 mm
Compact 4-seat spa built with US Aristech acrylic and Balboa BP200 G2 + TP500S control (3 kW heater). It delivers focused hydrotherapy from 16 total jets, a quiet 0.5 HP circulation pump and a dual-speed 2.5 HP jet pump.
Overview
Four upright seats in a small footprint — ideal for balconies or cozy patios. The 2 cm shell insulation and PS skirt (optional colors) on a solid timber frame with an ABS base keep the cabinet sturdy and heat efficient.

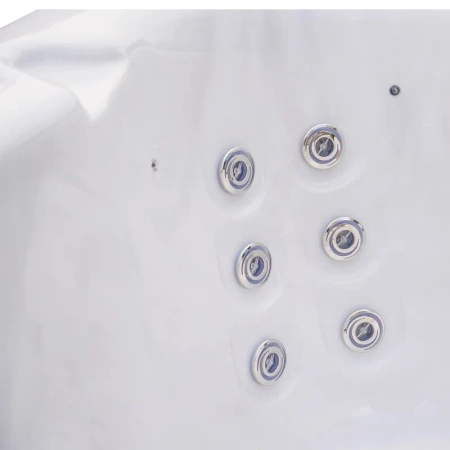

- 16 total jets — targeted massage in a compact body.

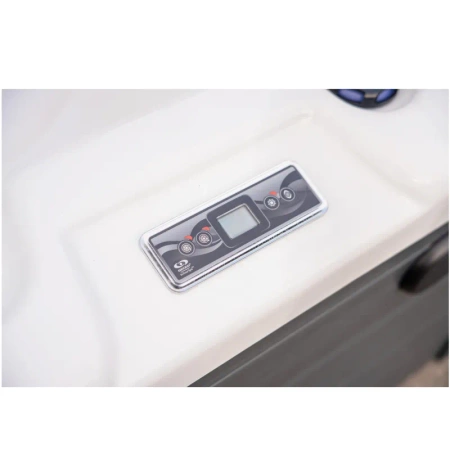

- Balboa control — reliable temperature control and simple interface.
- Durable build — Aristech acrylic, timber frame, ABS base, PS skirt.
Configuration / Power
- Control system
- Balboa BP200 G2 + TP500S + 3 kW heater
- Power supply
- 220V / 380V / 110V

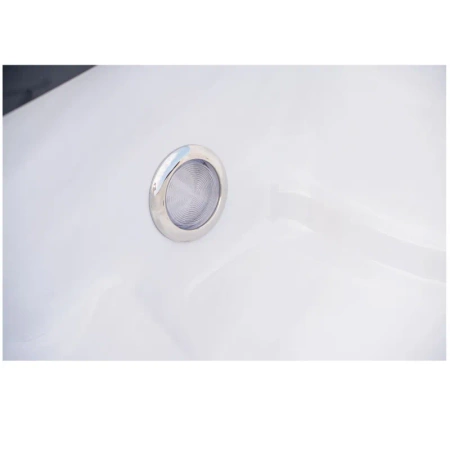

- Underwater lighting
- 1 pc
- Seating layout
- 4 seats
Dimensions
- Product size
- 1810 × 1810 × 770 mm
Materials
- Shell material
- US Aristech Acrylic
- Shell colors
- 7 options
- Shell insulation
- 2 cm
- Support frame
- Solid timber frame
- Base
- ABS
- Skirt
- PS (optional colors)
Pumps
- Circulation pump
- 1 × 0.5 HP
- Jet pump
- 1 × 2.5 HP (dual speed)
Jet Configuration
- Total jets
- 16 pcs
- Jets 2.5″
- 12 pcs
- Jets 3.5″
- 0 pcs
- Jets 1″
- 4 pcs
Filtration & Hygiene
- Filter
- 1 × 100 sf
- Ozonator
- 1 pc
Equipment
- Air valve
- 1 pc
- Suction
- 2 pcs
- Drainage outlet
- 1 pc
- Headrest pillows
- 1 pc
Compact comfort
Small outside, spacious inside — a social 4-seater with efficient insulation and dependable Balboa electronics.
Video
Specs based on the manufacturer’s sheet — minor variations may occur depending on configuration.
