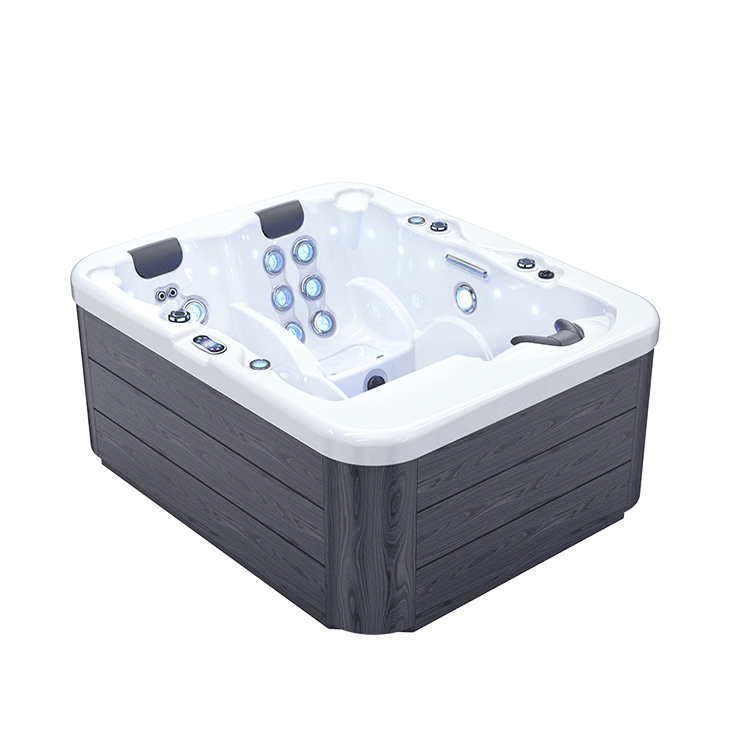

Outdoor Jacuzzi SPA — 3-person (1 lounge & 2 seats)
2100 × 1700 × 880 mm
Compact 3-seater built with US Aristech acrylic and Balboa BP200G2 + TP500S controller (3 kW heater). The system pairs a quiet 0.5 HP circulation pump with a 3 HP jet pump to drive a 42-jet hydrotherapy layout.
Highlights
- 42 total jets — mix of 5″, 3.5″, 2″ and 1″ jets for full-body coverage.
- Efficient insulation — 2 cm shell insulation retains heat in a small footprint.
- Sturdy cabinet — timber support frame, ABS base and new PS skirt.
Configuration / Power
- Control system
- Balboa BP200G2 + TP500S + 3 kW heater
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pc
- Seating layout
- 1 lounge & 2 seats
Dimensions & Weight
- Product size
- 2100 × 1700 × 880 mm
- Dry weight
- 330 kg
- Filled weight
- 1430 kg
Shell & Cabinet
- Shell material
- US Aristech Acrylic
- Shell colors
- 7 options
- Shell insulation
- 2 cm
- Support frame
- Timber
- Base
- ABS
- Skirt
- New PS
Pumps
- Circulation pump
- 1 × 0.5 HP
- Jet pump
- 1 × 3 HP
Jet Configuration
- Total jets
- 42 pcs
- Jets 5″
- 4 pcs
- Jets 3.5″
- 6 pcs
- Jets 2″
- 30 pcs
- Jets 1″
- 2 pcs
Filtration & Hygiene
- Filter
- 1 pc; 1 × 100 sf
- Ozonator
- 1 pc
Equipment
- Suction
- 2 pcs
- Drainage outlet
- 1 pc
- Headrests
- 3 pcs
- Air valves
- 2 pcs
Specs based on the manufacturer’s sheet — minor variations may occur depending on configuration.
