Dron DJI Matrice 3TD C2 + DJI Care 2 lata
Gross weight [eng]1610
Special offer
Sale
Dron DJI Matrice 3TD C2 + DJI Care 2 lata
- Domyślną nazwę, opis jak i inne parametry dodawanego produktu zmienisz udając się na stronę TOWARY \ Ustawienia nowo dodawanego produktu.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

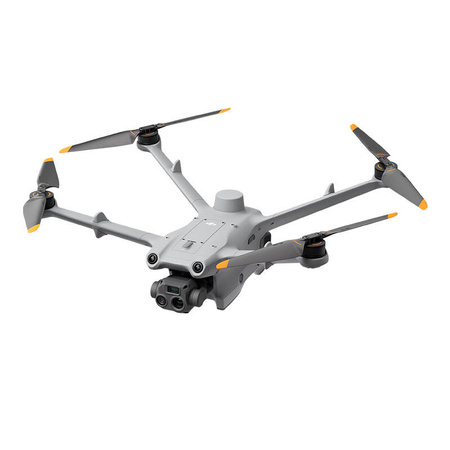

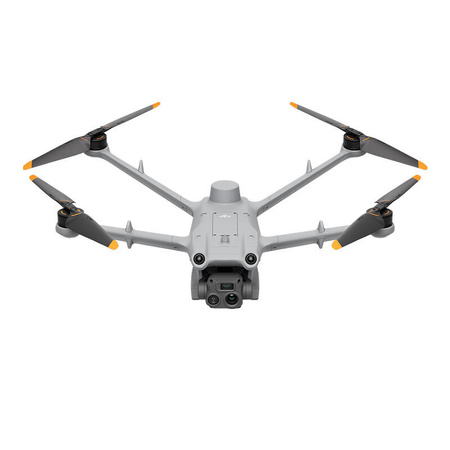

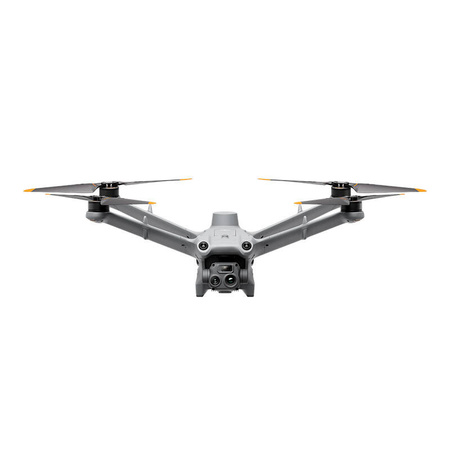

DJI Matrice 3TD for DJI Dock 2
Equipped with a wide-angle camera, telecamera and thermal imaging camera, the M3TD can display both visible light and thermal imaging images, making itmaking it suitable for precision tasks such as mapping and surveying, as well as security and inspection operations that may take place at night.
Kit contents:
- DJI Matrice 3TD drone (excluding battery and camera)
- DJI Care Enterprise Basic 2-year code (a code is required to activate DJI Care, which must be activated on the manufacturer's website within 48h of launching the drone)
| GENERAL INFORMATION | |
|---|---|
| Weight | 1410 g This value includes the weight of the battery, propellers and microSD card, but does not include third-party payloads. Actual product weight may vary due to differences in materials and external factors. |
| Maximum take-off weight | 1610 g |
| Dimensions | 335×398×153 mm (L × W × H, without propellers) |
| Wheelbase | Diagonal Wheelbase: 463.2 mm Left-right Wheelbase: 359.9 mm Front-to-rear Wheelbase: 291.4 mm |
| Maximum climbing speed | 6 m/s (normal mode) 8 m/s (sport mode) |
| Maximum descent speed | 6 m/s (Normal mode) 6 m/s (Sport mode) |
| Maximum horizontal speed (at sea level, no wind) | Normal mode with obstacle detection enabled: 15 m/s forward flight, 12 m/s backward flight, 10 m/s sideways flight Sport mode: 21 m/s forward flight, 18 m/s rearward flight, 16 m/s sideways flight |
| Maximum resistance to wind speed | During operation: 12 m/s. During take-off/landing: 8 m/s |
| Maximum take-off height | 4000 m |
| Maximum flight time | 50 minutes Measurement in a controlled test environment. The specific test conditions are as follows: Forward flight at a constant speed of 46.8 km/h in a windless laboratory environment at an altitude of 20 metres above sea level, in photo mode (no photography during flight), with obstacle avoidance disabled and from 100% battery level to 0%. Results may vary depending on environment, actual use and firmware version. |
| Maximum hover time | 40 minutes Measured with DJI Matrice 3D series drones hovering in a windless environment at 20 metres above sea level and from 100% battery level to 0%. Results may vary depending on environment, actual use and firmware version. |
| Maximum operating radius | 10 km Measured in an environment with a temperature of approximately 25° C (77° F) at a safe battery charge level of 25%, ambient wind speed of approximately 4 m/s, round trip airspeed of approximately 15 m/s and during a hover of 10 minutes. Results may vary depending on environment, actual use and firmware version. |
| Maximum flight distance | 43 km Measured with a DJI Matrice 3D/3TD flying at a constant speed of 54 km/h in a windless environment, at an altitude of 20 metres above sea level and from 100% battery charge to 0%. Results may vary depending on environment, actual use and firmware version. |
| Maximum tilt angle | 25° (Normal mode) 25° (sport mode) |
| Maximum angular velocity | 250°/s |
| Global navigation satellite system | GPS + Galileo + BeiDou + GLONASS (GLONASS is only supported with the RTK module switched on). |
| Hovering accuracy range (windless or windy) | Vertical: ±0.1 m (with video positioning) ±0.5 m (with GNSS positioning) ±0.1 m (with RTK positioning) Horizontal: ±0.3 m (with video positioning) ±0.5 m (with GNSS positioning) ±0.1 m (with RTK positioning) |
| Operating temperature | -20° to 45° C (-4° to 113° F) |
| Degree of protection against ingress | IP54 |
| Motor model | 2607 |
| Propeller model | 1149, foldable, without quick release function |
| RTK module | Integrated in the drone |
| Night light (beacon) | Integrated on drone |
| WIDE-ANGLE CAMERA | |
| Image sensor | DJI Matrice 3TD: 1/1.32-inch CMOS, effective pixels: 48 MP |
| Lens | DJI Matrice 3TD FOV: 82° Format equivalent: 24 mm Aperture: f/1.7 Focus: 1 m to ∞ |
| Lens de-fogging | DJI Matrice 3TD: Wide angle camera supports lens fogging removal. |
| ISO range | DJI Matrice 3TD: 100-25600 |
| Shutter speed | DJI Matrice 3TD Electronic shutter: 8-1/8000 s |
| Maximum image size | DJI Matrice 3TD: 8064×6048 |
| Shooting modes | DJI Matrice 3TD Single: 12 MP, 48 MP Temporal: 12 MP, 48 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s* Intelligent Low Light: 12 MP Panorama: 12 MP (raw image); 100 MP (combined image) * 0.7 s and 1 s intervals are not supported when shooting 48 MP time lapse images. |
| Video resolution | H.264 4K: 3840×2160 at 30 fps FHD: 1920×1080 at 30 fps |
| Video bit rate | DJI Matrice 3TD 4K: 85 Mbps FHD: 30 Mbps |
| Supported file system | exFAT |
| Photo format | JPG |
| Video format | MP4 (MPEG-4 AVC/H.264) |
| CAMERA WITH TELEPHOTO LENS | |
| Image sensor | 1/2-inch CMOS, effective pixels: 12 MP |
| Lens | Field of view: 15° Format equivalent: 162mm Aperture: f/4.4 Sharpness: 3 m to ∞ |
| Lens de-fogging | DJI Matrice 3TD: Telecamera supports lens fogging removal |
| ISO range | DJI Matrice 3TD: 100-25600 |
| Shutter speed | Electronic shutter: 8-1/8000 s |
| Maximum image size | 4000×3000 |
| Image format | JPG |
| Video format | MP4 (MPEG-4 AVC/H.264) |
| Shooting modes | DJI Matrice 3TD Single: 12 MP Timed: 12 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s Intelligent low light: 12 MP |
| Video resolution | H.264 4K: 3840×2160 at 30 fps FHD: 1920×1080 at 30 fps |
| Video bit rate | DJI Matrice 3TD 4K: 85 Mbps FHD: 30 Mbps |
| Digital zoom | 8x (56x hybrid zoom) |
| THERMAL IMAGING CAMERA | |
| Sensor | Uncooled VOx microbolometer |
| Pixel pitch | 12 µm |
| Frame rate | 30 Hz |
| Lens | Field of view: 61° Format equivalent: 40 mm Aperture: f/1.0 Sharpness: 5 m to ∞ Do not expose the infrared camera lens to strong energy sources such as the sun, lava or a laser beam. Failure to do so may burn out the camera sensor and permanently damage it. |
| Sensitivity | ≤ 50 mK@F1.0 |
| Temperature measurement method | Spot measurement, surface measurement |
| Temperature measuring range | -20° to 150° C (-4° to 302° F, high gain mode) 0° to 500° C (32° to 932° F, low gain mode) |
| Palette | White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 |
| Picture format | JPEG (8-bit) R-JPEG (16-bit) |
| Video resolution | Normal mode: 640×512 at 30fps UHR thermal image mode: 1280×1024 at 30fps (With the UHR infrared image function enabled, the drone can automatically switch the UHR infrared image mode on or off depending on the brightness of the ambient light). |
| Video bit rate | 6 Mbps |
| Video format | MP4 (MPEG-4 AVC/H.264) |
| Shooting modes | Single Normal mode: 640×512 UHR Infrared picture mode: 1280×1024 Temporary Normal mode: 640×512, 0.7/1/2/3/5/7/10/15/20/30/60 s UHR Infrared picture mode: 1280×1024, 0.7/1/2/3/5/7/10/15/20/30/60 s |
| Digital zoom | 28x |
| Infrared wavelength | 8-14 µm |
| Infrared temperature measurement accuracy | ±2° C or ±2% (when using the higher value) |
| GIMBAL | |
| Stabilisation | 3-axis mechanical gimbal (tilt, roll, pan) |
| Mechanical range | Tilt: -135° to +45° Rotation: -45° to +45° Panorama: -27° to +27° |
| Controlled range | Tilt: -90° to +35° Panorama: No control |
| Maximum control speed (tilt) | 100°/s |
| Angular oscillation range | ±0.005° |
| OBSTACLE DETECTION | |
| Detection type | The drone supports six-way obstacle detection. The drone has a blind spot at the top rear of the aircraft at an angle of 10°. Always fly with caution. |
| Forward | Measuring range: 0.5-21 m Detection range: 0.5-200 m Effective detection speed: Flight speed ≤ 15 m/s Field of view: Horizontal 90°, Vertical 90° |
| Rearward | Measuring range: 0.5-23 m Effective detection speed: Flight speed ≤ 12 m/s Field of view: Horizontal 90°, Vertical 90° |
| Lateral | Measuring range: 0.5-15 m Effective detection speed: Flight speed ≤ 10 m/s Field of view: Horizontal 104°, Vertical 90° |
| Upwards | Measuring range: 0.5-21 m Effective detection speed: Flight speed ≤ 6 m/s Field of view: Front and rear 90°, Left and right 90° |
| Downwards | Measuring range: 0.5-14 m Effective detection speed: Flight speed ≤ 6 m/s Field of view: Front and rear 95°, Left and right 110° |
| Operating environment | Forward, backward, left, right and upward: Surfaces with clear patterns and adequate lighting (lux > 15) Downwards: Diffuse reflective surface with diffuse reflectance > 20% (e.g. walls, trees, people) and adequate lighting (lux > 15) |
| VIDEO TRANSMISSION | |
| Video transmission system | DJI O3 Enterprise transmission |
| Live view quality | 720p/30fps, 1080p/30fps (with DJI RC Pro Enterprise) 540p/30fps, 720p/30fps, 1080p/30fps (with DJI FlightHub 2) |
| Operating frequency | 2.4000-2.4835 GHz 5.150-5.250 GHz (CE: 5.170-5.250 GHz) 5.725-5.850 GHz In some countries and regions, the 5.1 GHz and 5.8 GHz frequency bands are prohibited or the 5.1 GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information. |
| Maximum transmission distance (unobstructed, no interference) | DJI Matrice 3TD FCC: 15 km CE: 8 km SRRC: 8 km MIC: 8 km Measurements were taken in an undisturbed outdoor environment free of interference. The above figures represent the farthest communication range for one-way and round-trip flights within each standard. Always pay attention to the RTH reminders in DJI FlightHub 2 when flying. |
| Maximum transmission distance (unobstructed, with interference) | Strong interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC) Medium interference (suburban areas, urban parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC) Low interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC) Measurements while the aircraft is flying (without external payload devices) in an undisturbed environment with typical interference. The above figures represent the farthest communication range for one-way and round-trip flights under each standard. Always pay attention to the RTH reminders in DJI FlightHub 2 during flight. |
| Maximum download speed | 5 MB/s (with DJI Dock 2) 15 MB/s (with DJI RC Pro Enterprise) Measured in a laboratory environment with low interference in countries/regions supporting both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on actual conditions. |
| Lowest latency | Video transmission delay from the aircraft to the docking station is approximately 110 to 150 milliseconds (depending on actual environmental conditions). The latency of video transmission from the docking station to the DJI FlightHub 2 depends on actual network conditions and computer configuration. |
| Antenna | 4 antennas, 2T4R |
| Transmitter power (EIRP) | 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE) |
| MASS MEMORY | |
| Supported memory cards | Drone: U3/Class10/V30 or later. See below for a list of recommended microSD cards. |
| Recommended microSD cards | SanDisk Extreme 32 GB V30 A1 microSDHC SanDisk Extreme PRO 32 GB V30 A1 microSDHC SanDisk Extreme 512 GB V30 A2 microSDXC Lexar 1066 x 64 GB V30 A2 microSDXC Kingston Canvas Go! Plus 64 GB V30 A2 microSDXC Kingston Canvas React Plus 64 GB V90 A1 microSDXC Kingston Canvas Go! Plus 128 GB V30 A2 microSDXC Kingston Canvas React Plus 128 GB V90 A1 microSDXC Kingston Canvas React Plus 256 GB V90 A2 microSDXC Samsung PRO Plus 256 GB V30 A2 microSDXC |
| ACUMULATOR | |
| Capacity | 7811 mAh |
| Voltage | 14,76 V |
| Maximum charge voltage | 17,0 V |
| Type | Li-ion 4S |
| Chemical composition | LiNiMnCoO2 |
| Energy | 115,2 W |
| Weight | 544 g |
| Number of cycles | 400 |
| Charging temperature | 5° to 45° C (41° to 113° F) |
