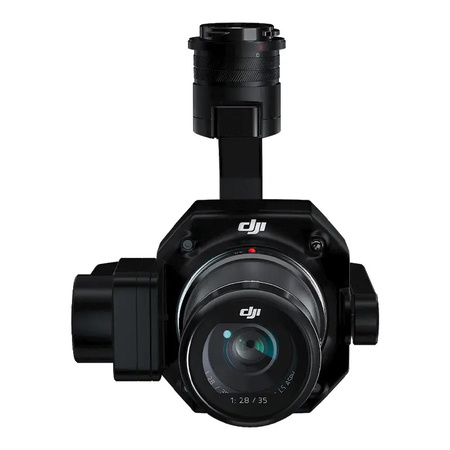

Camera DJI Zenmuse P1

Zenmuse P1 - a new quality of measurement

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed focal length lenses on a 3-axis stabilised gimbal. Designed for photogrammetric flight, it takes performance and accuracy to a whole new level.

• Accuracy without photopoints 3 cm horizontal / 5 cm vertical
• High performance - coverage of 3 km2 in a single flight
• Full-frame 45 MP matrix 3-axis gimbal, intelligent shots
• Mechanical shutter speed of 1/2000th second
• TimeSync 2.0 - microsecond-level synchronisation

Extraordinary performance

The Zenmuse P1 incorporates a full-frame, low-noise, high-sensitivity sensor that can take snapshots every 0.7 seconds in flight and cover 3 km2 in a single flight.

Remarkable accuracy

Featuring a mechanical shutter and the all-new TimeSync 2.0, which synchronises time between modules at the microsecond level, the Zenmuse P1 camera allows users to capture data with centimetre-level accuracy combined with real-time position and orientation compensation technology.

Outstanding versatility

Create 2D, 3D models with the integrated 3-axis gimbal, which can be equipped with 24/35/50mm lenses and Smart Oblique Capture.

Performance that covers it all - full frame camera

• 45MP full-frame sensor
• 4.4μm pixel size
• High sensitivity
• Snapshots every 0.7 seconds
• TimeSync 2.0 synchronises the camera, flight controller, RTK module and gimbal on a microsecond level.

Flexibility and versatility, multitude of lenses

• Global mechanical shutter speed of 1/2000th of a second
• Microsecond exposure sampling
• Supports 24/35/50mm lenses with DJI DL mount
• Work smart, work fast

Smart Oblique Capture

Capture a 7.5km2 area in one working day with the Zenmuse P1. Improve the efficiency of your photography mission with Smart Oblique Capture, where the gimbal automatically rotates to take images from the different angles needed. Only the images needed for reconstruction will be taken at different angles of the flight area, increasing post-processing efficiency by 20% to 50%.

Intelligent data management

Management of your mission data streamlined like never before.

• Mission files are automatically associated with mission name and date
• Centralised storage for imagery, GNSS data and TimeStamps.MRK files.
• Image metadata includes internal and external camera parameters and RTK status.

Fieldwork report

Check data quality immediately after flight by verifying position data and number of images acquired, as well as RTK status and positioning accuracy.

Mission mode for each scenario

• 2D orthophotomap
• 3D Oblique mission
• Detailed model-making mission
• Real-time mapping

Applications

• Topographic mapping
  Acquisition of data that meets the accuracy requirements of 1:500 scale without photopoints.
• Cadastral surveys
  Quickly generate centimetre-accurate 3D models.
• AEC and surveying
  Manage the full project lifecycle with 2D and 3D data.
• Natural resource management
  Measure, classify or determine the characteristics of water bodies and forests.
• Geological surveys
  Safely collect accurate millimetre-level aerial data of geological hazard sites.
• Disaster site observation
  Get a real-time overview of extensive disaster areas to help teams make key decisions.

Kit contents

• Zenmuse P1 camera with 35mm lens
• DJI Care Enterprise one-year protection (auto-activation)
• DJI Terra Electricity for 3 months
• Case
