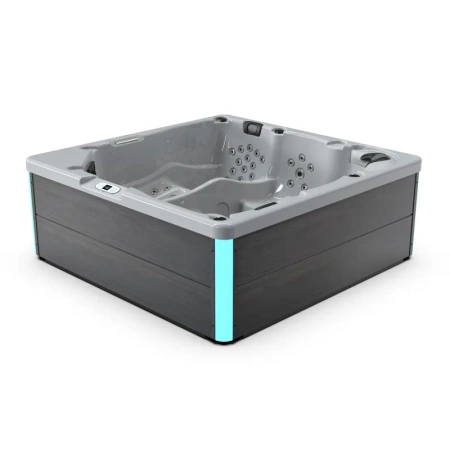

5-Person Massage Tub, Outdoor Jacuzzi – V01
V01 is a five-person spa with 108 jets, the Balboa BP6013G2 + Touch3 system, and a 3 kW heater. The shell is made from US Aristech acrylic, with an aluminum frame and 2 cm basin insulation. Dimensions: 2300*2300*820mm
Model Description

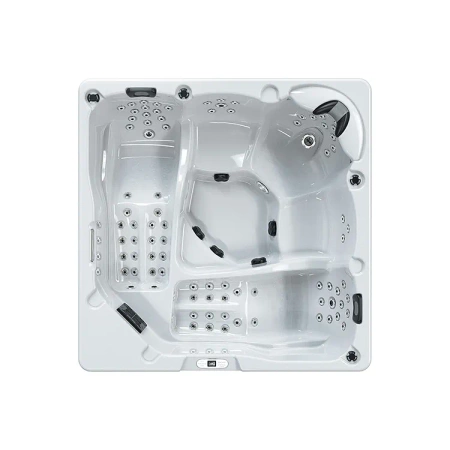

A compact square layout with 5 seats and ergonomic profiling provides comfortable back and lumbar support. A set of directional jets delivers effective massage and quick relaxation after a long day.
- 108 jets — placed for back and calves; comfortable relaxation for 5 people.
- Balboa BP6013G2 + Touch3 — proven electronics, stable temperature.
- Durable construction — Aristech acrylic, ABS+PVC base.
Configuration / Power Supply
- Control System
- Balboa BP6013G2 + Touch3 + 3 kW heater
- Power Supply
- 220V / 380V / 110V
- Underwater Lighting
- 1 unit
- Seating Layout
- 5 seats
Dimensions and Weight
- Product Size
- 2300*2300*800mm
- Weight (Dry)
- 410 kg
- Weight When Filled
- 2210 kg
Shell & Materials
- Shell Colors
- 7 color options
- Shell Material
- Aristech Acrylic (USA)
- Frame
- Wood (20 mm)
- Skirt
- PS Skirt + PC Corner
- Base
- ABS with PVC
- Basin Insulation
- ~2 cm
Pumps
- Certifications
- UL / CE / KC
- Circulation Pump
- 1 × 0.5 HP
- Jet Pump
- 2 × 4 HP
Jet Configuration
- Total Number of Jets
- 108 pcs.
- Jets (5″)
- 1 unit
- Jets (3.5″)
- 3 units
- Jets (2.5″)
- -
- Jets (2″)
- 104 units
- Jets (1″)
- -
Filtration & Hygiene
- Filter
- 1 unit; 1 × 1.50 sf
- UV Sterilizer
- 1 unit
Equipment
- Directional Valve
- 1 unit
- Suction
- 2 units
- Drain
- 1 unit
- Headrests
- 3 units
Commercial Notes
- Delivery Time
- up to ~30 days after deposit
- Warranty
- 2–5 years (depending on the component)
