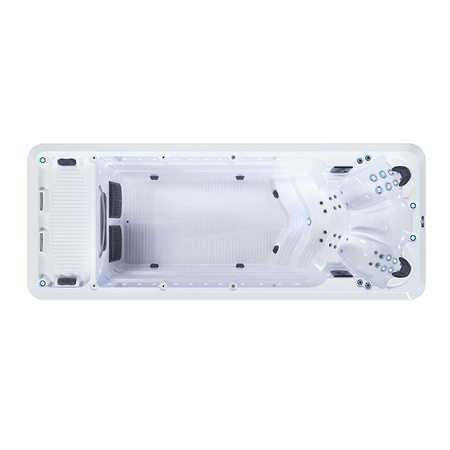

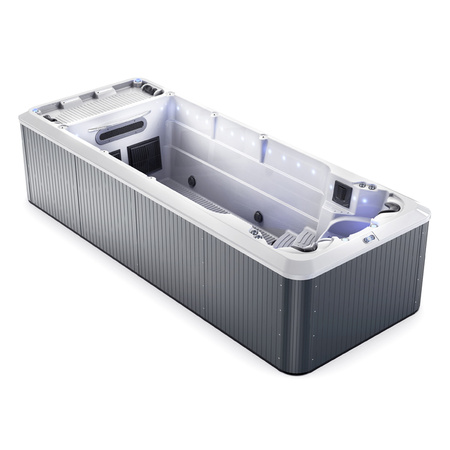

Swim Spa — 7-person (1 lounger & 6 seats)
5800 × 2280 × 1400 mm
Family swim spa finished with US Aristech Acrylic (shell color: Silver White), on a galvanized-steel frame with PVC base and PS skirt (optional colors). Control is via Balboa BP6013G3 + TP600 with 3 kW heater. Pumps: 1 × 1 HP circulation + 3 × 3 HP jet pumps.
Configuration / Power
- Control system
- Balboa BP6013G3 + TP600 + 3 kW heater
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pc
- Seating layout
- 1 lounger & 6 seats
Dimensions & Weight
- Product size
- 5800 × 2280 × 1400 mm
- Dry weight
- 1430 kg
- Filled weight
- 8490 kg
Shell & Cabinet
- Shell material
- US Aristech Acrylic
- Shell color
- Silver White
- Shell insulation
- ~2 cm
- Support frame
- Galvanized steel
- Base
- PVC
- Skirt
- PS (optional colors)
Pumps
- Circulation pump
- 1 × 1 HP
- Jet pumps
- 3 × 3 HP
Jet Configuration
- Total jets
- 38 pcs + 3 swim jets
- Hydro jets (2″)
- 22 pcs
- Hydro jets (1″)
- 4 pcs
- Hydro jets (3.5″)
- 4 pcs
- Hydro jets (2.5″)
- 4 pcs
- Hydro jets (5″)
- 4 pcs
Filtration & Hygiene
- Skimmer filters
- 2 pcs • ~50 sf each
- Ozonator
- 1 pc
Features
- Suction
- 6 pcs
- Headrest pillows
- 4 pcs
- Air valves
- 4 pcs
- Drainage outlet
- 1 pc
Technical data from the manufacturer’s sheet — commercial terms removed; specs may vary with configuration.
