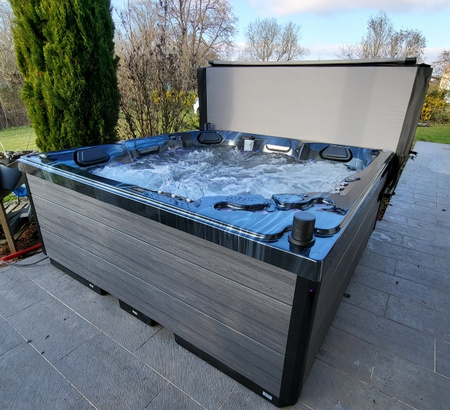

Outdoor Jacuzzi SPA — 5-person (2 lounges & 3 seats)
2100 × 2100 × 900 mm
Family-size spa in US Aristech acrylic with Balboa BP200 G2 + Touch 3 controller (3 kW heater). A quiet 0.5 HP circulation pump and a 3 HP jet pump feed a 37-jet layout across two lounges and three upright seats.
Highlights
- 37 total jets — 5″/3.5″/2.5″/2″ mix for balanced hydrotherapy.
- Rigid cabinet — aluminium support frame (40×20 mm) and aluminium skirt panel (10 mm) with ABS corners.
- Efficient shell — 2 cm insulation for steadier water temperature.
Configuration / Power
- Control system
- Balboa BP200 G2 + Touch 3 + 3 kW heater
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pc
- Seating layout
- 2 lounges & 3 seats
Dimensions & Weight
- Product size
- 2100 × 2100 × 900 mm
- Dry weight
- 350 kg
- Filled weight
- 1850 kg
Shell & Cabinet
- Shell material
- US Aristech Acrylic
- Shell colors
- 7 options
- Shell insulation
- 2 cm
- Support frame
- Aluminium 40 × 20 mm
- Base
- ABS
- Skirt
- Aluminium panel (10 mm) + ABS corner
Pumps
- Circulation pump
- 1 × 0.5 HP
- Jet pump
- 1 × 3 HP
Jet Configuration
- Total jets
- 37 pcs
- Jets 5″
- 5 pcs
- Jets 3.5″
- 10 pcs
- Jets 2.5″
- 8 pcs
- Jets 2″
- 14 pcs
Filtration & Hygiene
- Filter
- 1 pc; 2 × 50 sf
- Ozone generator
- 1 pc
Equipment
- Suction
- 2 pcs
- Air valves
- 3 pcs
- Drainage outlet
- 1 pc
- Headrest pillows
- 3 pcs
Specifications derived from the manufacturer’s sheet; minor variations may occur depending on configuration.
