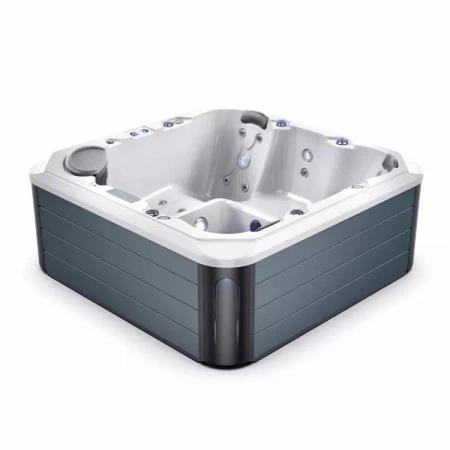

Outdoor Jacuzzi SPA — 5-person (2 lounges & 3 seats)
2100 × 2100 × 820 mm
Compact 5-seat spa made from US Aristech acrylic with Balboa BP200G2 + TP500S control (3 kW heater). A quiet 0.5 HP circulation pump and a 3 HP jet pump power a 32-jet layout for effective hydrotherapy.
Overview

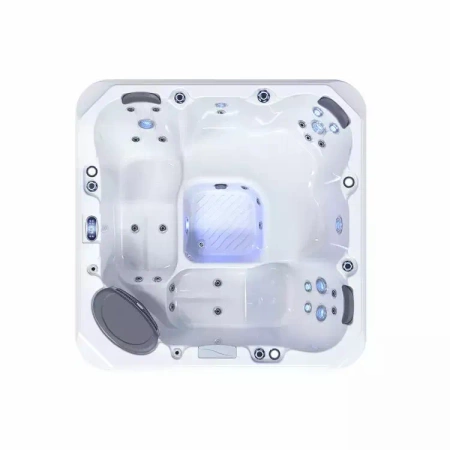

Two lounges + three upright seats, ideal for families in a 2.1 m square footprint. Preservative wood frame, ABS base and a new PS skirt with PS corners deliver durability and tidy looks; 2 cm shell insulation helps retain heat.

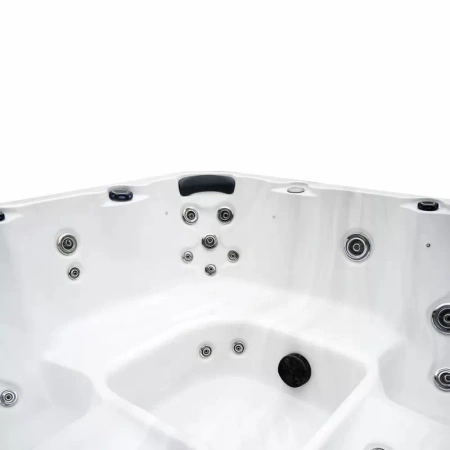

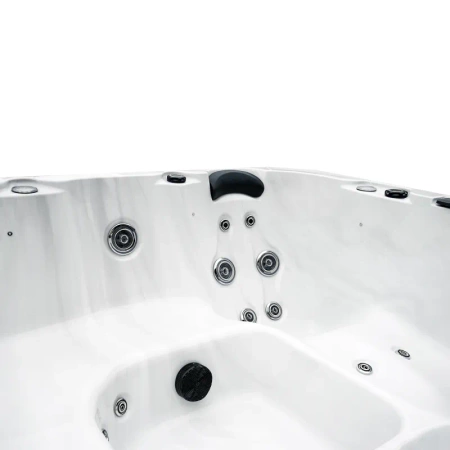

- 32 total jets — balanced massage for back, shoulders and calves.
- Reliable Balboa electronics — stable temperature and intuitive TP500S interface.
- Durable cabinet — Aristech acrylic, treated wood frame, ABS base, new PS skirt + corners.
Configuration / Power
- Control system
- Balboa BP200G2 + TP500S + 3 kW heater
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pc
- Seating layout
- 2 lounges & 3 seats
Dimensions & Weight
- Product size
- 2100 × 2100 × 820 mm
- Dry weight
- 300 kg
- Filled weight
- 1600 kg
Materials
- Shell material
- US Aristech Acrylic
- Shell colors
- 7 options
- Shell insulation
- 2 cm
- Support frame
- Preservative wood
- Base
- ABS
- Skirt
- New PS skirt + PS corner
Pumps
- Circulation pump
- 1 × 0.5 HP
- Jet pump
- 1 × 3 HP
Jet Configuration
- Total jets
- 32 pcs
- Jets 5″
- 4 pcs
- Jets 3.5″
- 6 pcs
- Jets 2.5″
- 5 pcs
- Jets 2″
- 15 pcs
- Jets 1″
- 2 pcs
Filtration & Hygiene
- Filter
- 1 pc; 1 × 100 sf
- Ozone
- 1 pc
Equipment
- Suction
- 2 pcs
- Air valves
- 2 pcs
- Drainage outlet
- 1 pc
- Headrest pillows
- 3 pcs
Comfort in a compact footprint
Efficient insulation and a sturdy, treated-wood frame keep heat in and weather out — perfect for year-round relaxation on smaller patios.
Specs based on the manufacturer’s sheet — minor variations may occur depending on configuration.
