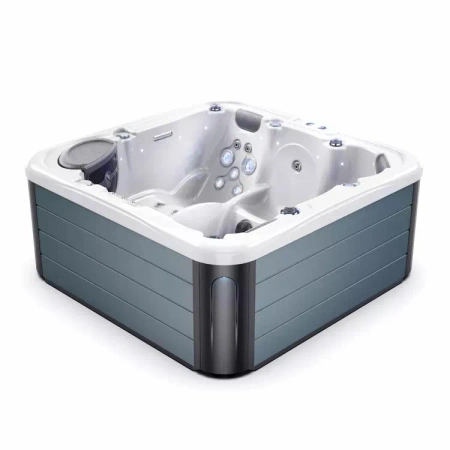

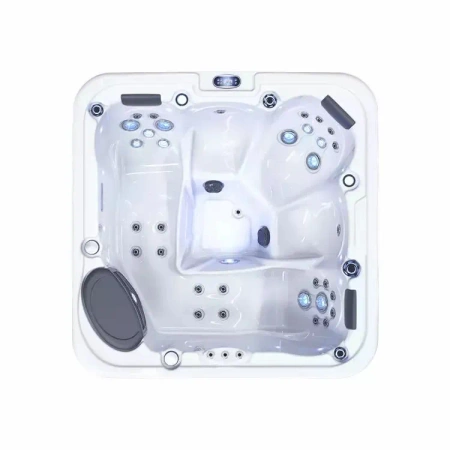

Outdoor Jacuzzi SPA — 5-person (2 lounges & 3 seats)
1950 × 1950 × 820 mm
Compact 5-seat spa built with US Aristech acrylic and Balboa BP200 G2 + TP500S control with a 3 kW heater. It delivers targeted hydrotherapy from a 35-jet setup, a quiet 0.5 HP circulation pump and a 3 HP jet pump.
Overview
Two ergonomic lounges plus three contoured seats provide full-body relaxation in a compact 1.95 m square footprint. 2 cm shell insulation and a new PS skirt with PS corners on a treated timber frame and ABS base combine comfort with durability.
- 35 total jets — mixed sizes for back, shoulders and calves.
- Balboa control — stable temperature and intuitive TP500S interface.
- Durable build — Aristech acrylic, treated timber frame, ABS base, new PS skirt + corners.
Configuration / Power
- Control system
- Balboa BP200 G2 + TP500S + 3 kW heater
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pc
- Seating layout
- 2 lounges & 3 seats
Dimensions & Weight
- Product size
- 1950 × 1950 × 820 mm
- Dry weight
- 300 kg
- Filled weight
- 1500 kg
Materials
- Shell material
- US Aristech Acrylic
- Shell colors
- 7 options
- Shell insulation
- 2 cm
- Support frame
- Treated timber
- Base
- ABS
- Skirt
- New PS skirt + PS corners
Pumps
- Circulation pump
- 1 × 0.5 HP
- Jet pump
- 1 × 3 HP
Jet Configuration
- Total jets
- 35 pcs
- Jets 5″
- 6 pcs
- Jets 3.5″
- 5 pcs
- Jets 2″
- 20 pcs
- Jets 1″
- 2 pcs
Filtration & Hygiene
- Filter
- 1 pc; 1 × 100 sf
- Ozone generator
- 1 pc
Equipment
- Suction
- 2 pcs
- Air valves
- 2 pcs
- Drainage outlet
- 1 pc
- Headrest pillows
- 3 pcs
Compact comfort
The 1.95 m square footprint fits most patios while offering two full lounges. Efficient insulation and a sturdy PS skirt with reinforced corners help keep heat in and weather out.
Specs based on the manufacturer’s sheet — minor variations may occur depending on configuration.
