Harvia Cilindro PC90 Steel sauna heater - 9 kW, free-standing, stainless steel, built-in control
The Harvia Cilindro PC90 Steel is a 9 kW freestanding electric sauna heater for saunas with a volume of 8-14 m³. The tall cylindrical basket holds a very large number of stones, which provides soft, enveloping steam or sharper heat - depending on the pouring method.
With its stainless steel casing, built-in control panel and the ability to operate on a 400 V 3N or 230 V 1N system, the Cilindro PC90 Steel is perfect for both home saunas and more demanding projects.
Key benefits of the Harvia Cilindro PC90 Steel heater
- Power of 9 kW - ideal for saunas with a volume of 8-14 m³.
- High cylindrical basket - holds a very large number of stones, providing intense heating and long-lasting steam.
- Stainless steel - elegant appearance, corrosion and heat resistance.
- Adjustable heat character - gentle steam when pouring over the sides of the basket, more intense when pouring from the top.
- Built-in control panel - knobs at the bottom of the oven for temperature and time control.
- Free-standing floor mounting - easy sauna positioning, can be combined with benches and protective screens.
- Operation on 400 V 3N or 230 V 1N - flexible adaptation to existing electrical installation.
Technical specifications
- ModelHarviaCilindro PC90 Steel
- Power9kW
- Sauna volume8-14m³
- Type of heaterElectric, free-standing
- HousingmaterialStainlesssteel
- Stone capacityVerylarge number of stones (cylindrical basket)
- ControlsBuilt-inpanel at the bottom of the sauna cooker
- Standard power supply400V 3N~ (3 phases)
- Alternative power supply230V 1N~ (1 phase) - after appropriate choice of cable and fuse.
- Type of circuitSinglecircuit dedicated to the cooker
- Type of connectionPermanent connection- not to a standard 230 V socket
- CableselectionAccording to Harvia documentation and installation project (selected by electrician)
- Cable included in deliveryNone- the cable is selected and installed by an electrician
- Width320mm
- Height930mm
- Depth320mm
- Weight of cooker (without stones)approx. 10 kg
- InstallationFree-standing, on the sauna floor
- Min. sauna heightInaccordance with manufacturer's instructions (min. approx. 190 cm)

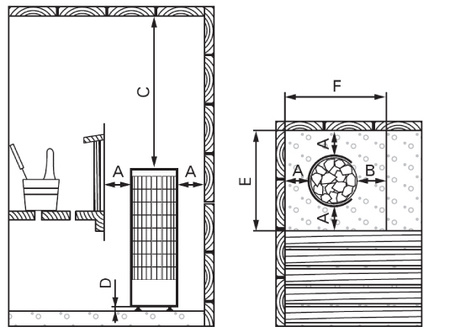

- Safety distancesAccordingto Harvia recommendations (from walls, benches and ceiling)
- Sauna typeDry sauna(high temperature, low humidity)
- SafetyfeaturesOverheatingprotection, temperature monitoring
- Use of stonesRegularinspection and periodic replacement of stones
- InstallationFittingonly by a qualified electrician
- WarrantyIn accordancewith Harvia manufacturer's terms and conditions
High stone basket, flexible heat and elegant form
Cylindrical basket - the heart of the Cilindro cooker
The Harvia Cilindro PC90 Steel has a high cylindrical basket filled with a large number of stones. This design allows for very intense, deep heating and soft, pleasant steam. The stones heat up evenly and the sauna maintains a comfortable temperature for a long time.
Adjustable heat character - from soft to hot
The Cilindro gives you the possibility to adjust the character of the heat. Pouring over the sides of the basket will give you softer, softer steam, while pouring directly from the top will provide a more intense, "sharper" heat experience. This makes the oven easily adaptable to the users' preferences.
Stainless steel - durability and modern look
The stainless steel casing gives the cooker a modern, minimalist character that blends well with both traditional and modern sauna designs. Stainless steel also guarantees high corrosion resistance and a long service life for the cooker.
Built-in control panel at the bottom of the cooker
The PC90 Steel model has built-in controls - ergonomic knobs located at the bottom of the unit. They make it possible to set the temperature and time of the oven without the need for an external panel. This solution is convenient and intuitive for everyday use.
Electrical installation - 400 V 3N or 230 V 1N
The Harvia Cilindro PC90 Steel cooker can operate in a 400 V 3N (three-phase) installation or - after appropriate selection of the cable and protections - in a 230 V 1N (single-phase) installation. Please note, however, that at 9 kW it is a high power consumption unit and cannot be connected to a normal 230 V socket.
Pleasenote:the power cable is not included. Due to the need to adapt the cable to the specific electrical installation in the facility, we do not sell cables as a set. The selection of the appropriate cable cross-section, type of protection and connection should be left to a qualified electrician/specialist, in accordance with the applicable standards and manufacturer's documentation.
Safety and comfort
The sauna cooker is equipped with overheating protection and correct installation with safety distances and adequate ventilation of the sauna ensures the comfort and safety of users. Regular inspection of the condition of the stones and electrical components keeps the cooker in excellent condition for many years.
Summary
The Harvia Cilindro PC90 Steel is a combination of an elegant, high stone basket, high power of 9 kW, flexible steam character and convenient built-in control. It will be great for saunas where both the quality of the thermal experience and modern interior aesthetics matter.
