4-person outdoor jacuzzi with a sunken hot tub with hydromassage – ZR7103
a four-person spa with 34 with nozzles, systemem Balboa BP200G2 + TP500Sand a heater 3 kW. Acrylic pool US Aristech, aluminum frame, basin insulation 2 cm. Dimensions: 2000*1550*810mm
Model description
Compact square layout4 seats and ergonomic profiling provides comfortable support for the back and lower back. The directional jet set offers effective massage and quick relaxation after a long day.
- 34 jets— arranged for the back and calves; comfortable relaxation in 4 os.
- Balboa BP200G2 + TP500S- proven electronics, stable temperature.
- Durable construction- acrylic Aristech, aluminum frame 40×20 mm, base ABS+PVC.
Configuration / Power
- Control system
- Balboa BP200G2 + TP500S + heater 3 kW
- Power supply
- 220V / 380V / 110V
- Underwater lighting
- 1 pcs.
- Seating arrangement
- 4 places
Dimensions and weight
- Product dimension
- 2000*1550*810mm
- Weight (dry)
- 240 kg
- Weight after filling
- 1240 kg
Coating and materials
- Shell colors
- 7 colors to choose from
- Shell material
- Acrylic Aristech (USA)
- Frame
- Aluminum (40 × 20 mm)
- Skirt
- PS (various colors)
- Base
- ABS from PVC
- Bowl insulation
- ~2 cm
Pumps
- Certifications
- UL / CE / KC
- Circulation pump
- 1 × 0,35 HP (WTC50)
- Flow pump
- 1 × 3 HP (LP300)
Nozzle configuration
- Total number of jets
- 34 pcs.
- Nozzles (3,5″)
- 9 pcs.
- Nozzles (2,5″)
- 2 pcs.
- Nozzles (2″)
- 2 pcs.
- Nozzles (1″)
- 17 pcs.
Filtering and hygiene
- Filter
- Top-mount, 1 pcs.
- Sterilizer UV
- 1 pcs.
Equipment
- Directional valve
- 1 pcs.
- Suction
- 2 pcs.
- Drain
- 1 pcs.
- Headrest cushions
- 3 pcs.
Commercial notes
- Delivery time
- do ~30 days from the deposit
- Warranty
- 2–5 years (depending on the part)
Gallery and details

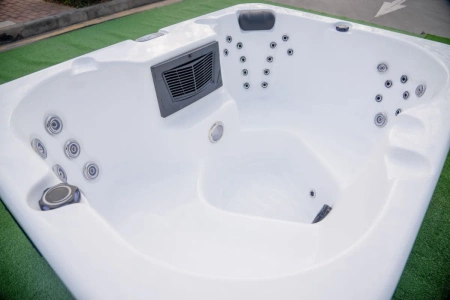

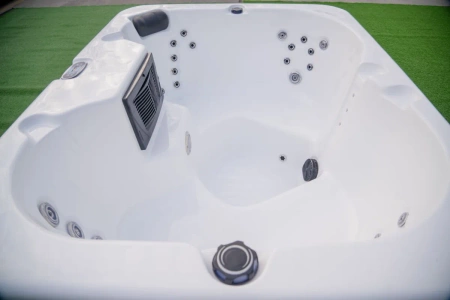

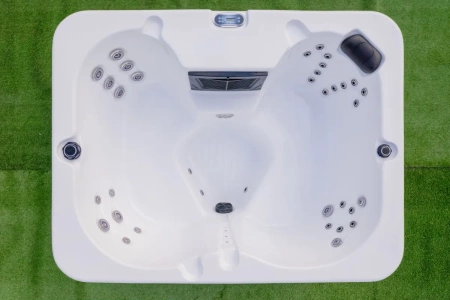

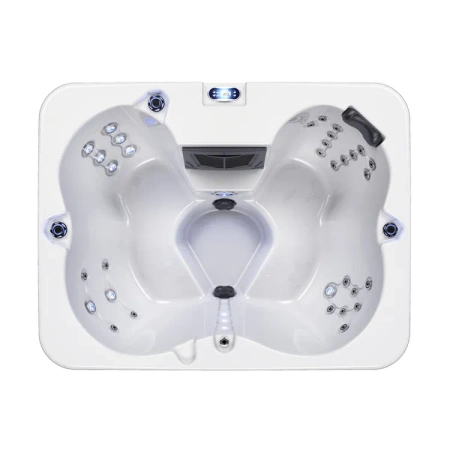

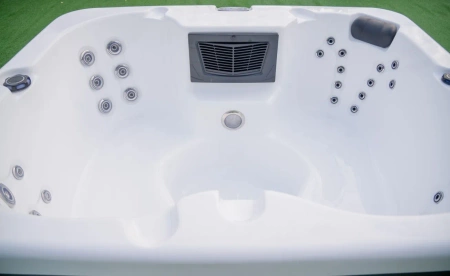

Multifunctional massage in the Infinity jacuzzi
Rotating and shower jets massage the neck, shoulders, and back. The main seat, tailored to the physique of Europeans, ensures complete comfort and relaxation.
Durable construction and timeless style
Multi-layer reinforcements enhance stability and longevity. Timeless styling perfectly complements the garden or terrace.
Customization of appearance — choose your color
Various side panel options will match the spa to your decor. Durable materials and simple corners give an elegant, timeless character.

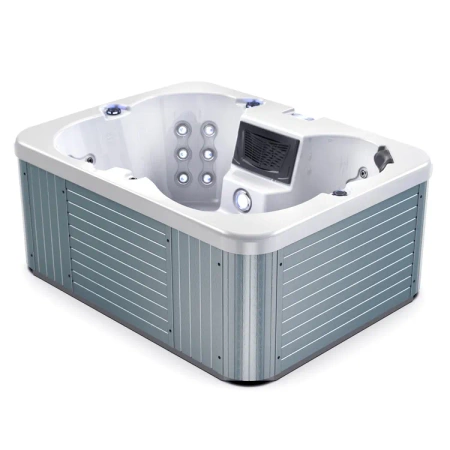

Modern casing — acrylic Aristech + aluminum
Acrylic panels Aristech with a wood texture protect the interior of the spa. Aluminum corners 3 mm and a base made of ABS 10 mm provide insulation and stability.
Multilayer acrylic — warmth for longer
Acrylic layer + epoxy resin + fiberglass + insulation foam = long temperature retention and high durability. Bowl colors: Odyssey, Oyster Opal, Ocean Wave, Mediterranean Sunset, Gypsum, Midnight Opal, Silver White Marble, Midnight Canyon.
Insulated cover — savings and comfort
The cover reduces heat loss, protects the water from contamination, and extends the lifespan of the device — lower bills and greater convenience every day.
Complete equipment — build your ideal spa
Bluetooth sound system (pop-up/fixed speakers), touch panel, lighting LED, aromatherapy, fountains, illuminated handles, insulation, covers, steps 2/3/4 steps, and cover lifters (cover lifter 1/2).
Ready for your own SPA zone?
enjoy a hydromassage for two with electronics Balboa and 34 jets.
- ✅ 4 seat • 34 jets
- AcrylicAristech, aluminum frame • top-mount filter + UV
- ✅ Compact dimensions • easier installation on the terrace
Data based on the manufacturer's card — may change during production/configuration.
